Power Analysis for 3P4W, 3P3W, 1P2W, 1P3W
True RMS value (V123 and 1123)
Active Power (W, KW, MW, GW)
Apparent and Reactive Power (KVA, KVAR)
Power Factor (PF), Phase Angle (0)
Energy (WH, KWH, KVARH, PFH)
• AC Current (0.04A to 6000A) and Voltage measurement: True RMS, Auto Range.
• Capable of analyzing IT standby power consumption to the maximum demand of a factory
Display of 35 Parameters in One Screen (3P4W)
• Programmable CT (1 to 600) and PT (1 to 3000) Ratios
• Display of Overlapped Voltage and Current Waveform
Average Demand (AD in W, KW, MW)
• Maximum Demand (MD in KW, MW, KVA,
MVA) with Programmable Period
Harmonic Analysis to the 99th Order
• Display of 50 Harmonics in one Screen with Waveform
• Display of Waveform with Peak Values (1024 Samples / Period)
• Analysis of Total Harmonic Distortion (THD-F)
• Graphic Phasor Diagram with 3 Phase System Parameters
• Capture 28 Transient Events (Time + Cycles) with Programmable Threshold (%)
• DIP, SWELL, and OUTAGE are included in transient events.
• 3 Phase Voltage or Current Unbalance Ratio (VUR, IUR)
• 3 Phase Voltage or Current Unbalance Factor (d0%, d2%)
• Calculated Unbalanced Current through Neutral Line (In)
512K Memory with Programmable Interval (Sampling time from 2 to 3000 seconds, 17,000 records for 3P4W system)
Output of Waveform, Power Parameters and Harmonics at Command
Large Dot Matrix LCD Display with Backlight
• Software to work with PC via Optical Isolated RS-232C to USB Interface
Conductος δίτοι
Built-in timer and calendar for data logging
Share on :
Similar Products
10 Display Easy to View LCD Screen. Connectors for 4 Current Sensing Clamps. 1P2W, 1P3W, 3P3W2M,...
10 Display Easy to View LCD Screen. Connectors for 4 Current Sensing Clamps. 1P2W, 1P3W, 3P3W2M, 3P3W3M & 3P4W Power Measurement.
True RMS Sensing.
Power KW, KVAR, KVA, PF,0,Hz, & Energy KWh, KVARH & KVAh Measurement.
Phase sequency indicator function.
Backlight display function.
Manual Data Memory and Read (50 sets).
Data Logging
USB Optical Interface with three phase voltage / current Waveform display and Harmonic analysis.
Easy to use Push Button Operation.
Light Weight, Portable Design.
Simple operation and ruggedness.
Check of open phase and phase sequence are possible in o...
Simple operation and ruggedness.
Check of open phase and phase sequence are possible in one unit.
Long selling models were renewed with the design and the measurement category!
・Two Functions in One Unit
Presence of open phase can be checked by the lamps, and the phase
sequence can be indicated by the rotating disk.
・ High Reliability
measuring range for 3-phase installations from 110V to 600V.
Sealed against dust ensures the trouble-free performance.
・ Battery-free tester
- 6315 (Power Quality Analyzer )
- 8130 (Flexible clamp sensor...
- 6315 (Power Quality Analyzer )
- 8130 (Flexible clamp sensor) × 3
- 7141B (Voltage test lead set: 4pcs)
- 7170 (Power cord)
- 7219 (USB cable)
- 8326-02 (SD card 2GB)

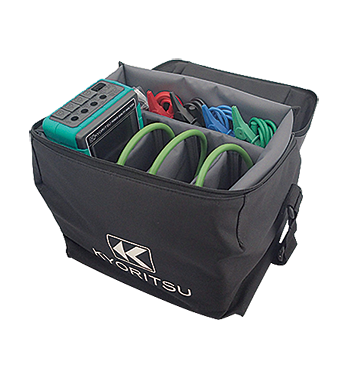

- 9135 (Carrying case)
